Micro column

  1. Feature
  2. Line up

Micro column is a nano/micro column with 0.075 mm- 0.3 mm I.D. It is a high-performance column that was manufactured by combining low-absorption packing materials, including L-column series, an originally developed packing technique and a column structure with a small dead volume.

Micro column

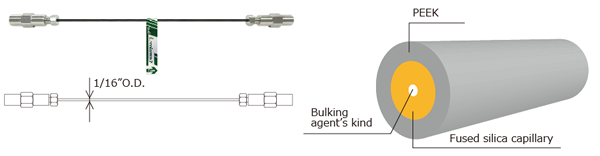

This column is easy to handle because it is a fused silica capillary with an outer sleeve of PEEK resin. Connection to MS is easy because connectors are attached to the column.

  • Inner diameter: 0.075 mm-0.3 mm
  • Connection: 1/16 inch stainless-steel connector
Micro column

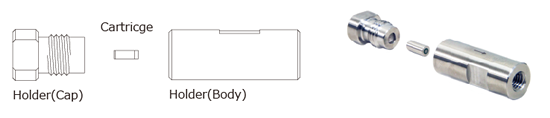

Trap column

In proteomic analysis using LC/MS/MS, the trap column is indispensable for increasing the injection volume.
This trap column does not decrease the theoretical plate number because of its very small dead volume.

Trap column
